M14 Diamond Tile Hole Saws – Dry Cut | 6–45mm

Drill clean holes in suitable tiles using Acorn Tiles M14 Diamond Hole saws

Designed for dry drilling with a compatible angle grinder, these diamond bits are available in seven useful sizes for common pipework, fittings and bathroom-installation requirements.

Available sizes

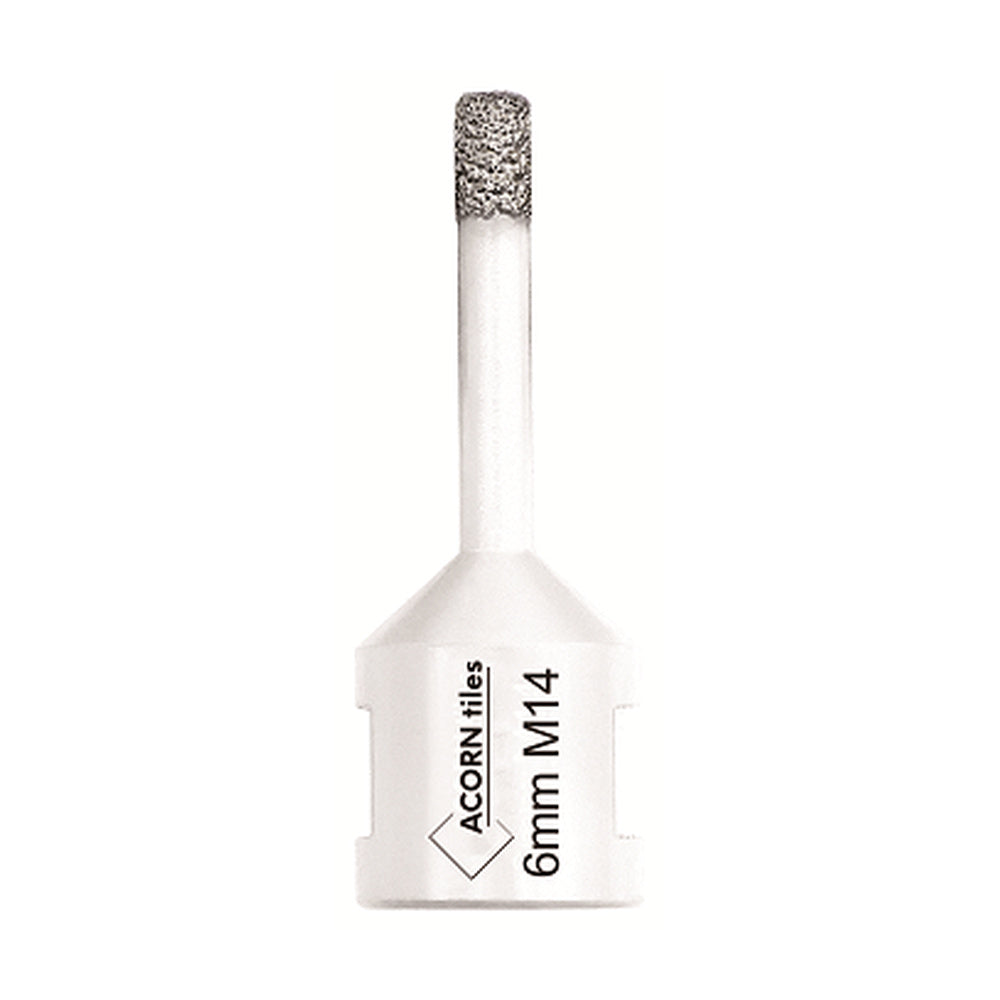

• 6mm

• 8mm

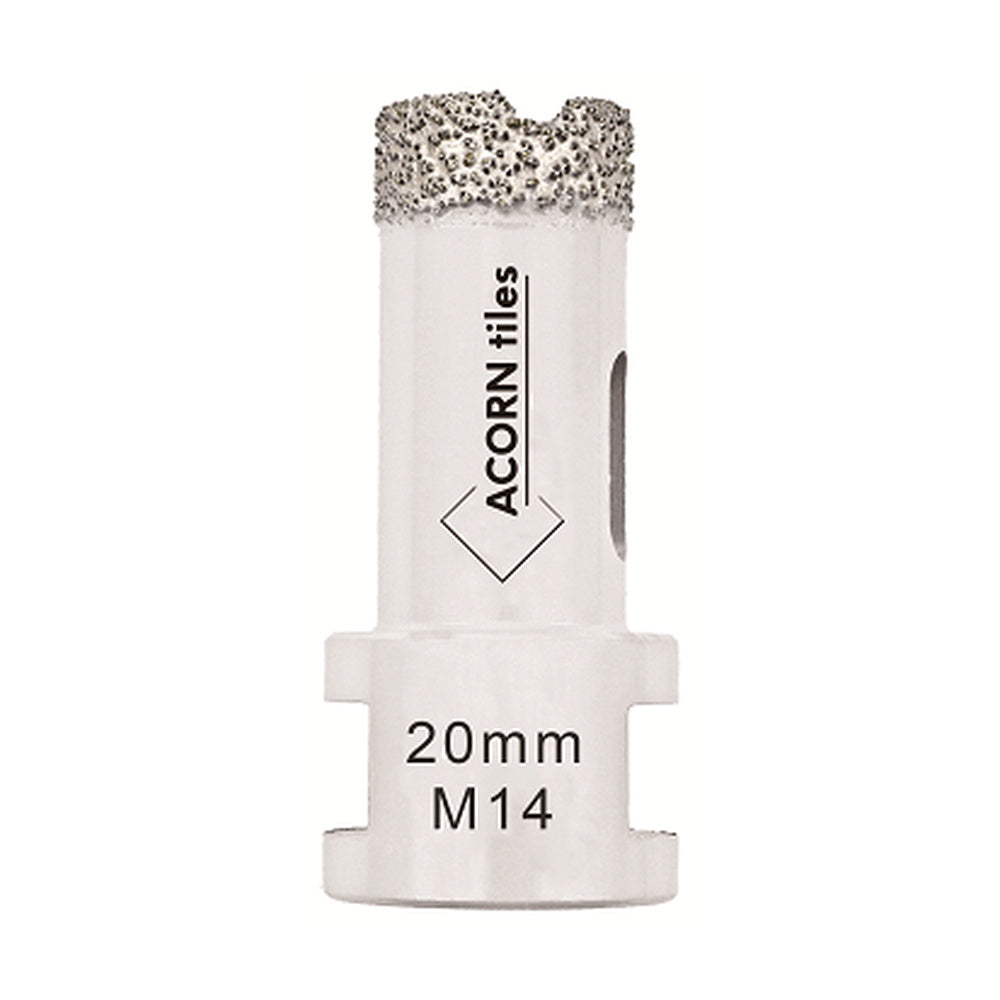

• 20mm

• 28mm

• 32mm

• 40mm

• 45mm

Key features

• M14 threaded connection

• Designed for use with a compatible angle grinder

• Suitable for dry drilling

• Diamond cutting surface

• Seven sizes available

• Suitable for professional and DIY tiling projects

• Acorn Tiles own-brand product

Choosing the correct size

Select the bit diameter according to the required opening and allow the clearance specified for the fitting or pipe. Measure the component before drilling rather than relying solely on its nominal size.

How to use

Mark the hole position and ensure the tile is securely supported. Start the drill at an angle so the edge of the bit creates an initial groove, then gradually bring the bit upright as the hole develops.

Use light, controlled pressure and allow the tool to cut. Avoid forcing the bit or allowing it to overheat. Periodically withdraw it from the hole to assist cooling and remove debris.

Safety information

Check that the bit, thread and speed rating are compatible with the angle grinder before use. Inspect the bit before every use and do not use it if damaged or excessively worn.

Wear suitable eye, hearing and respiratory protection. Follow the instructions supplied with the angle grinder and use appropriate dust-control measures.

Material suitability can vary according to the tile and drilling technique. If uncertain, test on an offcut before drilling the installed tile.
